Balancing Valve with Flow Meter
The balancing valve with flow meter is a hydraulic device that accurately regulates the flow rate of heating medium supplied to system terminals The correct balancing of hydraulic systems is essential to guarantee the system operation according to its design specifications, high thermal comfort and low energy consumption.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
INTRODUCTION
The balancing valve with flow meter is a hydraulic device that accurately regulates the flow rate of heating medium supplied to system terminals The correct balancing of hydraulic systems is essential to guarantee the system operation according to its design specifications, high thermal comfort and low energy consumption.
The balancing valve with flow meter is a hydraulic device that accurately regulates the flow rate of heating medium supplied to system terminals The correct balancing of hydraulic systems is essential to guarantee the system operation according to its design specifications, high thermal comfort and low energy consumption. This particular series of valves is equipped with a flow meter for a direct reading of the regulated flow rate. The flow meter is housed in a by-pass circuit on the valve body and can be shut off during normal functioning, allowing fast and easy balancing of circuits without the need for differential pressure gauges. The balancing valve (in the threaded version) is equipped with a hot pre-formed shell insulation to ensure a perfect thermal performance in case of use both with hot and chilled water.
FEATURES
Name: Balancing valve with flow meter
Material: BrassCW617N
Max. percentage of glycol: 50%
Medium: water, glycol solutions
Max. percentage of glycol: 50%
Max. working pressure: 10 bar
Working temperature range: -10–110°C
Accuracy: ±10%
Control stem angle of rotation: 90°
Operating wrench: 1/2”–1 1/4”: 9 mm
1 1/2” and 2”: 12 mm
Connections: threaded 1/2”–2” F (ISO 228-1)
|
SIZE |
1/2" |
3/4" |
1" |
1.1/4" |
1.1/2" |
2" |
|
Flow rate range(i/min) |
2-7 |
5-13 |
10-40 |
20-70 |
30-120 |
50-200 |
Sample : Available
OEM/ODM : YES
Warranty: 3 years
Place Of Origin : Zhejiang,China

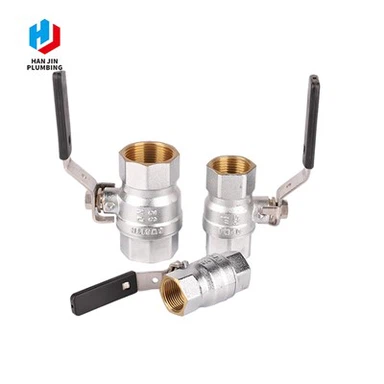

Hot Tags: balancing valve with flow meter, China balancing valve with flow meter manufacturers, suppliers, factory, Brass Safety Valve, Brass Ball Valve with Nickle Plated, Stainless Steel Angle Valve, Balancing Valve with Flow Meter, Brass Thermostatic Radiator Valve, Valve
